Detailed Description

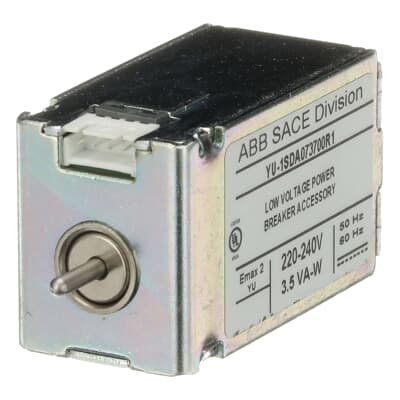

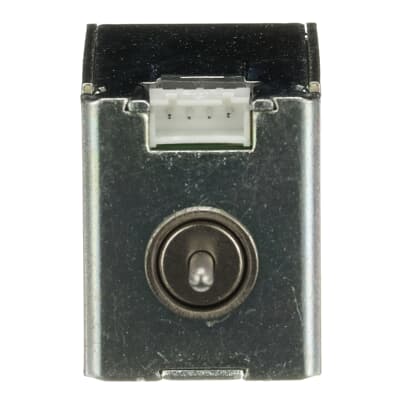

The YU E1.2..E6.2-XT7-XT7M accessory is an undervoltage release module designed for ABB SACE Emax 2 and Tmax XT circuit breakers, covering frame sizes E1.2 through E6.2.

It operates with a control voltage of 220 to 240 V, in both AC and DC systems, meaning it can trigger breaker opening when the auxiliary voltage drops below this level.

Identified by product code 1SDA073700R1, this module conforms to IEC standards and serves as a safety and protection accessory in low-voltage switchgear.

The module is compact and lightweight (approx. 0.15 kg) and is typically specified with details like packaging and certifications in manufacturer datasheets.

Summary Table
Feature Specification
Product Type Undervoltage release module
Compatible Ranges SACE Emax 2 and Tmax XT circuit breakers, sizes E1.2–E6.2
Voltage Rating 220–240 V AC/DC
Product Code 1SDA073700R1
Standards IEC compliant
Weight (approx.) 0.15 kg
Short (Catalog-style) Description

ABB YU E1.2..E6.2-XT7/XT7M Undervoltage Release (220–240 VAC/DC) – Accessory for
SACE Emax 2 and Tmax XT series circuit breakers (sizes E1.2 to E6.2). Enables automatic breaker
trip under undervoltage conditions; widely used in low-voltage protective switchgear for enhanced safety.
